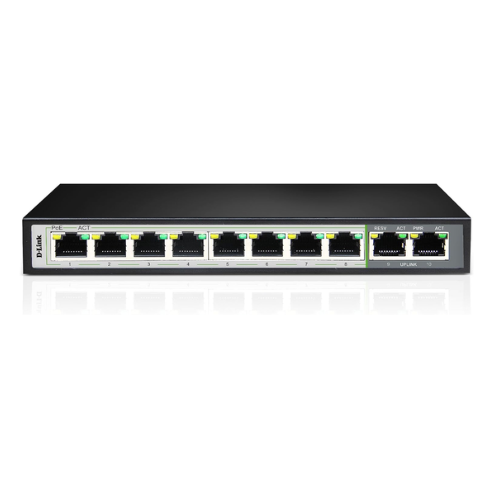

D-Link DES-F1010P-E/B 10-Port Long Range PoE Switch

Brand:
  • Ports: 8 x 10/100Mbps PoE ports and 2 x 10/100Mbps uplink ports
  • PoE standards: IEEE 802.3af and IEEE 802.3at PoE+
  • PoE power budget: 96W total
  • Maximum PoE output: Up to 30W per PoE port
  • Long Range PoE: Supports transmission distances of up to 250m
  • Switching capacity: 2Gbps
  • Design: Fanless, compact desktop switch with 6kV lightning protection

KSh 8,500.00 Exclusive of 16% VAT

Description

The D-Link DES-F1010P-E/B is designed for straightforward deployment in offices, retail spaces, schools, and surveillance installations. Its compact 184 x 94 x 27 mm body fits neatly on a desk, shelf, or inside a network cabinet, while the 0.95 kg weight makes installation and repositioning easy. The fanless design is a major advantage because it operates silently, making it suitable for reception areas, classrooms, and offices where noise would be distracting.

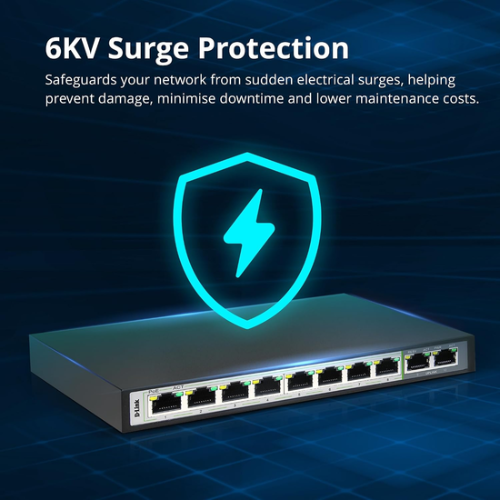

The switch also includes 6kV lightning protection, which helps protect connected equipment from electrical surges. For installers and business owners, this adds confidence when deploying network devices in locations where power stability can be a concern. Overall, the build focuses on reliability, simplicity, and long-term everyday use.

PoE Performance & Power Delivery

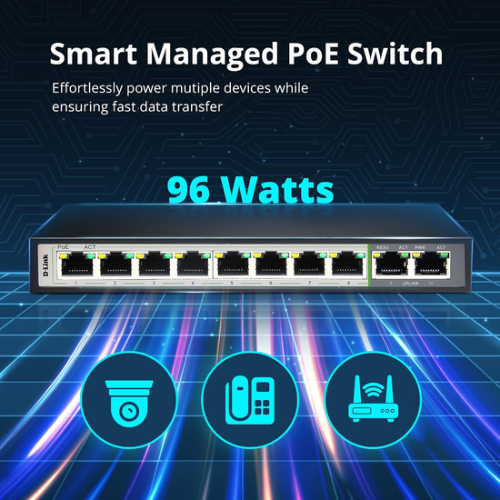

The 8 PoE ports are the core strength of this switch. They support both IEEE 802.3af and IEEE 802.3at standards, allowing you to power compatible devices such as IP cameras, wireless access points, and VoIP phones directly through the Ethernet cable. With a 96W total PoE budget, the switch can support multiple devices at once without requiring separate power supplies for each one.

Each PoE port can deliver up to 30W, giving you flexibility for devices with higher power requirements. This is especially useful for surveillance systems, where cameras may need stable power for continuous operation. By combining power and data in one cable, the switch reduces cable clutter, lowers installation time, and makes network expansion more affordable.

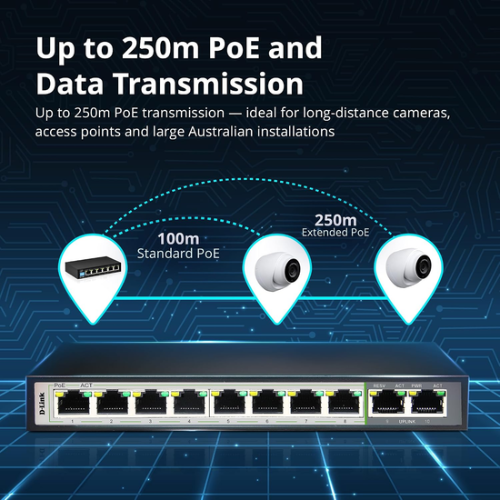

Long Range PoE & Coverage

The 250m Long Range PoE capability is one of the most valuable features for larger installations. Standard Ethernet runs are typically limited to 100m, but this switch can extend data and power transmission up to 250m for compatible setups, making it easier to reach cameras or access points in wider buildings, parking areas, or outdoor perimeters.

For CCTV projects, this means fewer switches, fewer power injection points, and a cleaner installation. For businesses with long corridors, warehouses, or multiple rooms, it provides more freedom in camera placement without compromising connectivity. This makes the DES-F1010P-E/B especially suitable for surveillance and security networking.

Network Efficiency & Reliability

The switch provides 8 x 10/100Mbps PoE ports and 2 x 10/100Mbps uplink ports, giving you enough capacity to connect devices while still linking back to your main router or upstream network. With a 2Gbps switching capacity, it handles everyday network traffic efficiently for small to medium-sized deployments.

It also supports IEEE 802.3x flow control, which helps reduce data loss when network traffic becomes heavy. The Auto MDI/MDIX feature automatically detects cable type, making connections simpler and reducing setup errors. Together, these features help maintain stable performance for cameras, access points, and office devices.

Ideal Users & Applications

This D-Link PoE switch is best suited for CCTV installers, IT technicians, small businesses, schools, offices, and home security setups. It is particularly effective when you need to connect several PoE devices in one location while keeping the network simple and manageable. The combination of PoE+ support, 96W power budget, and 250m Long Range PoE makes it a versatile choice for both new installations and network upgrades.

If you are building a surveillance system or expanding an office network in Kenya, this switch offers a strong balance of power, reach, and reliability. It is a smart option for users who want professional-grade connectivity without the complexity of managed switching.

Specification Details
Product name D-Link DES-F1010P-E/B 10-Port Long Range PoE Switch
Network ports 8 x 10/100Mbps PoE RJ45 ports (Ports 1–8)
Uplink ports 2 x 10/100Mbps RJ45 uplink ports (Ports 9–10)
Ethernet standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
PoE standards IEEE 802.3af and IEEE 802.3at
Total PoE budget 96W files.
Maximum PoE power per port 30W files.
Long Range PoE Up to 250m
Switching capacity 2Gbps
Packet forwarding rate 10M: 14,800pps; 100M: 148,800pps
Flow control IEEE 802.3x flow control
Auto MDI/MDIX Yes
Lightning protection 6kV built-in protection
Cooling Fanless design
Dimensions 184 x 94 x 27 mm
Weight 0.95 kg
Operating temperature 0°C to 40°C
Operating humidity 10% to 90% non-condensing
Power input External power adapter: 100–240V AC, 50/60Hz, 52V/1.85A
