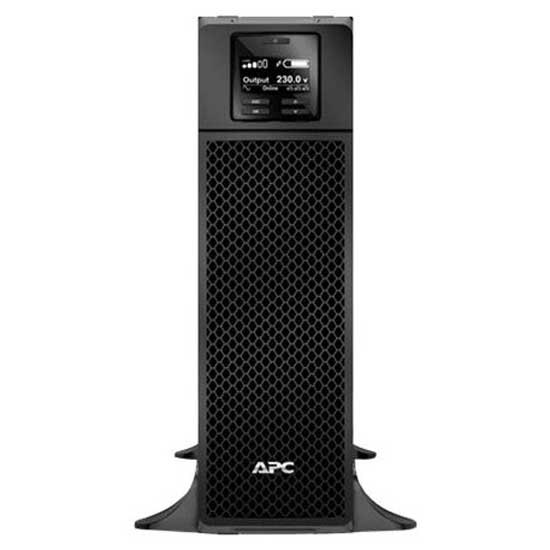

APC Smart-UPSRT5000VA230V,4.5KWatts/5.0kVA

Output:

• Max Configurable Power: 4.5 kW / 5.0 kVA
• Output Connections: (6) IEC 320 C13 + (2) IEC Jumpers + (4) IEC 320 C19 outlets
• Output Waveform: Pure sine wave

Input:

• Nominal Input Voltage: 230V
• Input Frequency: 40 – 70 Hz (auto sensing)
• Input Connections: Hard Wire 3 wire (1PH+N+G)

Battery & Runtime:

• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte
• Typical Recharge Time: 1.5 hours
• Run Time: Varies depending on connected load

Surge Protection and Filtering:

• Internal Bypass: Automatic and Manual
• Surge Energy Rating: 555 Joules

Physical:

• Dimensions: 432mm (H) x 130mm (W) x 660mm (D)
• Weight: 54.43 kg

Other Features:

• Double-conversion online topology: Offers the highest level of power protection and ensures consistent, clean power to your equipment, even during blackouts or severe voltage fluctuations.
• Scalable runtime: Extend runtime with additional battery packs (optional).
• LCD display: Shows real-time UPS status and parameters.
• Communication ports: USB and SmartSlot interface for remote monitoring and management.
• Intelligent battery management: Maximizes battery life and performance.
• Hot-swappable batteries: Replace batteries without powering down the UPS.
• Green mode: Reduces energy consumption and operating costs.
• Cold-start capable: Provides temporary battery power even when utility power is unavailable.
• Network Management Card (optional): Enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown.
